Automatic LCD Screen Tester / Multi Touch Tester High Technology
ZL2011
Model: RS-5610H
Purpose:
This touch screen testing machine independently researched,
developed and manufactured by our company is a high-technology
product integrating precision machinery, automatic control and
marking control technology, the core of which is the program of [
touch screen click marking control system] for computer control. It
has the advantages of strong function, simple programming,
convenient operation and low price etc. It is applicable for
capacitive touch screen, mobile phone manufacture product research
and development and product detection.
Patent No: ZL2011 2056 1683.X
Features:
(1). The touch panel terminal manufacturer provides test software
communication protocol of IC, It can realize the mutual control
between [ touch
screen click marking control system] and its communications, so as
to reach the detection of synchronism. It is compatible with many
brands’
IC, such as Cypress, Atmel, Focaltech, melfas, pixcir, Elan, ledis,
SSL, Avago, senteli, Hiamx, Synossys and Goodix, etc. can meet each
brand’s
IC test requirements.
(2). It meets touch panel accuracy test, jittering test, linearity
test, sensitivity test, long-time sliding test and long-time click
test;
(3). Movement locus and test: convenient coordinate positioning
function, it is only needed to take any three points in [
instruction program] to
generate movement lotuses such as circular and triangle, take any
two points to mark a line and any four points to mark a rectangle
and it can
also store the movement lotus according to the program of test
screen for the next calling;
(4). Strong storage functions: as the test document is stored in
the computer without limit of group number and test data, it is
convenient for calling;
(5). It can display the current coordinate values of X,Y axis,
motor driving speed and real-time position change etc. in real
time;
(6). Strong test software: the software is reserved with many test
methods according to the common test methods of touch panel and
customers
only need to input the touch panel size W&L and select test
method (such as accuracy test and linearity test) for test ,no need
editing each
time;
(7). Touch screen marking test: The test shall proceed along any
customized track. The tester clamps a copper test head to carry out
the test. The
height of the copper test head and test samples are adjustable and
the frequency is adjustable too (30 ~100 times/min).
(8). Touch screen click test: the tester clamps the stylus of the
mobile phone to carry out the test. The height of the stylus and
test samples are
adjustable and the frequency is adjustable too. (30 ~100
times/min).
(9). The cabinet made of with high-rigidity aluminum and the
surface is subject to anodizing treatment .
(10). X, Y axis is driven with Japan Panasonic servo motor and
transmitted with Japan THK precision ball screw and double THK
Linear guide rail,
with high speed, low noise and durability; with precise
positioning, it has the repeated accuracy of ≤0.01mm, that is the
best accuracy in the
industry.
(11). Software accurate positioning function: It can accurately
position the test sample with points X1, X2 and X3; after the
setting is stored for the
first time, samples of the same specification do not need to be
calibrated and positioned again with higher efficiency and
accuracy.
Specification:
| Model | RS-5610H |
| Test sample | Capacitive screen 1pcs, mobile phone 2pcs |
| X axis movement range | 0~300mm (12") |
| Y axis movement range | 0~300mm (12") |
| Z axis movement range | 0～50mm |
| Positioning accuracy control | ±0.001mm(±0.00004") |
| Repeated accuracy | ≤0.01mm(≤0.0004") |
| X-Y-Z movement speed | 0~200mm/sec(12000mm/min max Servo motor driving ) |
| Integrated weight load | 30g,150g,250g(4 sets) |
| Dimension (WxDxH) | 770x894x700mm |
| Weight | About 120kg |
| Special working table | W1400xD900xH600mm |
| Power supply | AC220V 5A or specified by user |

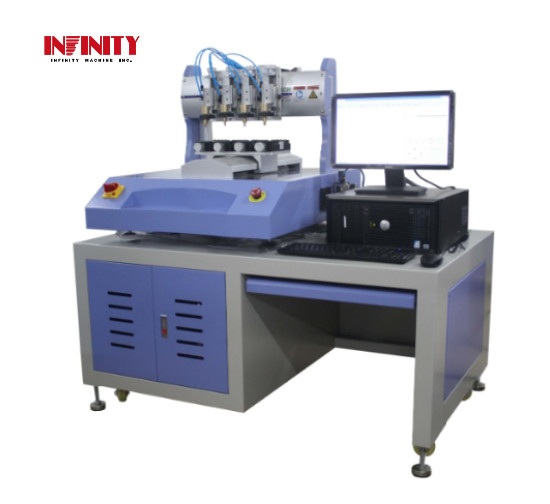

Picture:
