    Digital Display Plastic Testing Machines , IZOD Impact Test For Plastics

    Ask Lasest Price
    Brand Name : Infinity Machine
    Model Number : RS-8215A / RS-8215B
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    Digital Display Plastic Testing Machines , IZOD Impact Test For Plastics

    Digital Display Plastic Testing Machines , IZOD Impact Test For Plastics


    Model: RS-8215A / RS-8215B


    Application:


    This testing machine is to measure the impact-resistance of the specimens of various tough materials which endure the impact at specified angle and load.


    Test standards:


    IZOD: ASTM D256, ISO 180, GB/T 1843. JIS K7110

    CHARPY: ASTM D6110, ISO 179, GB/T1043


    Features:


    After test, test results show automatically and they can be saved or printed out.

    After test, it shows the angle and energy automatically.

    There are safety protection device and press button controlling the Impact action.


    Specification:


    ModelRS-8215ARS-8215B
    FunctionIZOD Digital Impact TesterCHARPY Digital Impact Tester
    Capacity1J, 2.75J, 5.5JStandard1J, 2J, 4JStandard
    11J, 22JOptional7.5J, 15JOptional
    Test angle150°
    Impact speedIZOD: 3.46m/sec / CHARPY: 2.9m/sec,
    Effective length of pendulumIZOD: 32.7cm / CHARPY: 22.96cm,
    Angle accuracy0.1°
    Energy accuracy0.001 J
    Energy unitKg-mm, kg-cm, kg-m, Ib-ft, Joule(N-m)
    Dimension(WxDxH)680x410x760mm
    Print outCapacity. Angle, energy, etc.
    WeightAbout 90kg
    Power supplyAC220V 50Hz 3A or specified by user

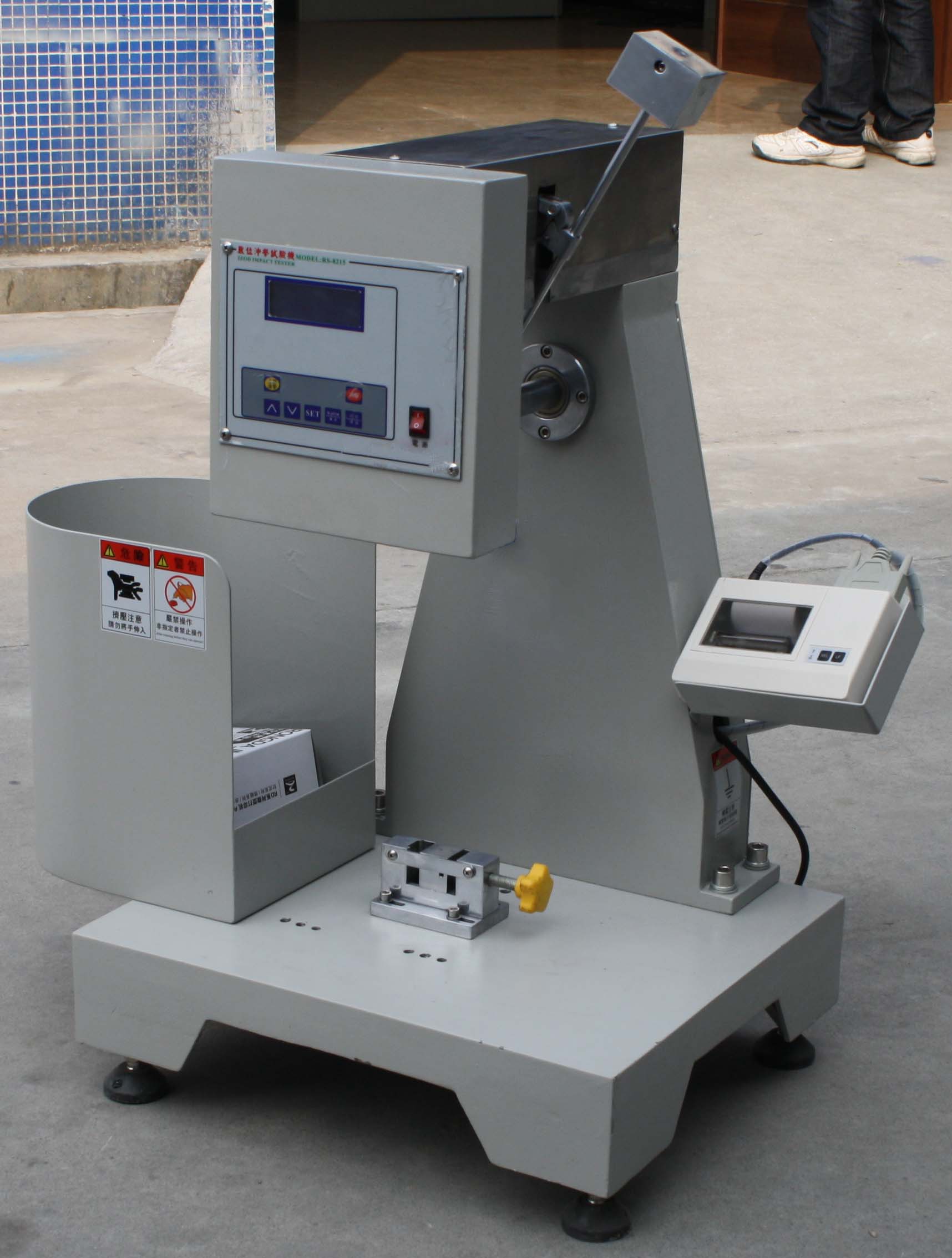

    Picture:


    Quality Digital Display Plastic Testing Machines , IZOD Impact Test For Plastics for sale
