IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment

Ask Lasest Price
Brand Name :	Infinity Machine
Model Number :	IB1151
Certification :	CE UL
Price :	USD1000~100000 PC
Payment Terms :	T/T,D/P,L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200PC PER MONTH
Delivery Time :	15-25 working days

Add to Cart

Product Details
Company Profile

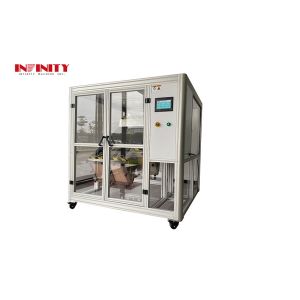

IB1151 Mobile Phone Tablets Double Rolling Barrel Drop Test Equipment

Product Description:

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.

Features:

Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
Using touch screen control, the test times and test speed can be set, and it has a power-down memory function. It will automatically stop when the set number of times is reached.
Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Technical Parameters:

Parameters	Value
Implementation standards:	IEC 60068-2-32；GB/T 2423.8-1995
Drop height:	500(1sets)1000mm(1sets)
Maximum weight of test piece:	5KG
Drop frequency:	1~40times/minCan be set
Drum width:	300mm
Barrel material:	Transparent acrylic
Falling plank material:	3mm thick steel plate + 19mm thick solid wood board (or specified)
Number of drops:	1~9999999Can be set
Machine size (WxDxH):	W1445xD1560xH1650mm
Machine weight:	378KG
Working power supply:	AC220V 5A 50Hz
equipment power	750Ｗ

Dimension Drawing:
