Thermal Shock Test Chamber Model Number IE31225L Temperature
Fluctuation ±1℃

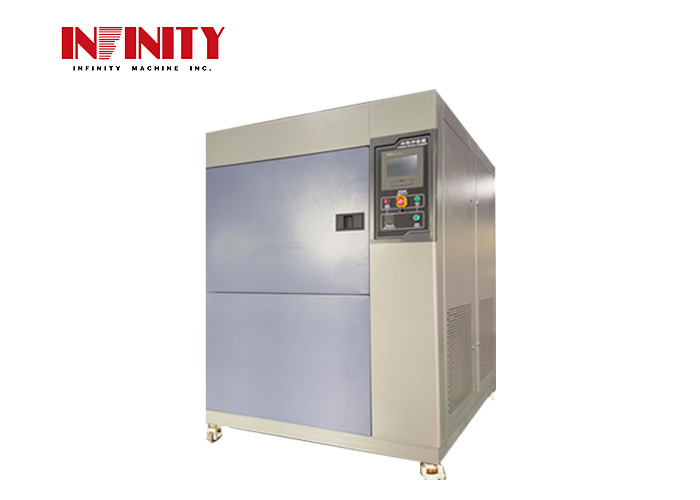

Programmable Thermal Shock Test Chamber
Model Number: IE31225L
Product Description:
Programmable Thermal Shock Test Chamber for users of the product machine (or components), electrical
appliances, instruments, materials, coatings, coatings, etc., for
the corresponding climate change test, suitable for electrical,
electronic, mechanical industries and other products, parts,
materials, etc., high and low temperature, wet and thermal test,
simulate temperature and humidity changes under the condition of
cold and thermal shock test, so as to evaluate the quality of the
test product.
Features:
- Product Name: Programmable Thermal Shock Test Chamber
- Thermal recovery time: Within 5Minc
- Warm Box:
- External Wall Material: High Quality Carbon Steel Plate, Surface
For Electrostatic Color Spray Treatment. The Left Side Of The Box
Is φ50mm Diameter Hole
- Inner Wall Material :SUS304# Stainless Steel Plate
- Insulation Material: Hard Polyurethane Foam Insulation Layer +
Glass Fiber
- Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To
Environmental Regulations And Is Safe And Non-toxic
- Power Supply : AC380;V50Hz;22KW
- Temperature fluctuation: ±1℃
Technical Parameters:
| Model Number | IE31225L |
| Temperature range | -40℃ ～ +150℃ |
| Temperature fluctuation | ±1℃ |
| Temperature uniformity | ≦2.0℃ |
Thermal recovery time | Within 5Minc |
Heating rate (thermal reserve zone) | It takes about 40 minutes for RT to rise to +150℃ |
Cooling Rate (Cold storage area) | It takes about 60min for RT to drop to -40℃ |
Interior dimension :WxHxD(mm) | 500x750x600 |
Carton size :WxHxD(mm) | 1600×1900×2250 |
| Warm Box | ●External wall material: high quality carbon steel plate, surface
for electrostatic color spray treatment. The left side of the box
is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate ● Insulation material: hard polyurethane foam insulation layer +
glass fiber |
| Box Door | For a single door, install a heating wire in the door frame to
prevent condensation in the door frame at low temperature |
| Inspection window | The W 300×H 400mm observation window is installed on the door of
the box, and multi-layer hollow electrothermal coated glass can
effectively keep heat and prevent condensation |
| Sample Stand | Stainless steel sample rack 2 layers, height adjustable, bearing
weight 30kg/ layer. |
Refrigeration compressor
| German Bitzer semi-compact compressor |
Coolants
| Non-fluorine environmental refrigerant R404A R23 conforms to
environmental regulations and is safe and non-toxic |
| Condenser system |
Water-cooled
|
| Safety protection device | Heater anti-burning protection; Heater overcurrent protection;
Circulating fan overcurrent overload protection; Compressor high
pressure protection; Compressor overheat protection; Compressor
overcurrent protection; Overvoltage underinverse-phase protection;
Circuit breaker; Leakage protection |
| Power Supply | AC380;V50Hz;22KW |
Applications:
Infinity Machine IE31225L Programmable Thermal Shock Test Chamber
Infinity Machine IE31225L Programmable Thermal Shock Test Chamber is a top-notch environmental test equipment certified by CE and
ISO. It is made in China with reliable quality assurance. The
minimum order quantity is 1 set. The package is a master carton.
The delivery time is 200 sets per month. The payment terms are T/T,
D/P, L/C. It takes about 55 minutes for the room temperature to
drop to -40℃. The power supply is AC380V, 50Hz, 22KW, and the
refrigeration compressor is German Bitzer semi-compact compressor.
Besides, it also has a variety of safety protection devices, such
as heater anti-burning protection, heater overcurrent protection,
circulating fan overcurrent overload protection, compressor high
pressure protection, compressor overheat protection, compressor
overcurrent protection, overvoltage underinverse-phase protection,
circuit breaker and leakage protection. The carton size is
WxHxD(mm): 1600×1900×2250.
Customization:
Customized Programmable Thermal Shock Test Chamber from Infinity Machine
Programmable Thermal Shock Test Chamber from Infinity Machine have been used for testing a variety of
products in diverse industries, from electronics and food to
automotive and aerospace.
IE31225L Programmable Thermal Shock Test Chamber
- Brand Name: Infinity Machine
- Model Number: IE31225L
- Place of Origin: Made In China
- Certification: CE,ISO
- Minimum Order Quantity: 1set
Support and Services:
Programmable Thermal Shock Test Chamber Technical Support & Services
We provide a comprehensive range of technical support and services
for our Programmable Thermal Shock Test Chamber. Our services include:
- Installation & commissioning
- Preventative maintenance & calibration
- Spare parts
- On-site service & repair
- Software & firmware updates
- Training & user support
Our team of experienced engineers are available to help with any
technical queries you may have. We are committed to providing the
highest level of customer service and satisfaction.
Packing and Shipping:
Programmable Thermal Shock Test Chamber Packaging and Shipping:
The environmental test chamber is shipped in a wooden crate and is
secured with high-density foam and bubble wrap. It is then securely
sealed to ensure safe delivery. The crate also includes custom-cut
foam inserts to protect the chamber during shipment.
