Product Description:

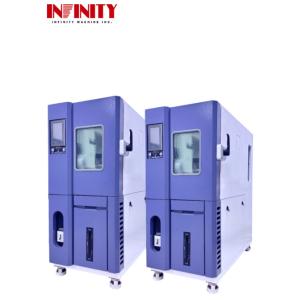

Constant Temperature and Humidity Test Chamber
This series of constant temperature and humidity box is a reliable
product for environmental simulation tests on industrial products.
It is equipped with precise temperature and humidity control, a
wide control range, and meets the performance standards of
GB5170.2.3.5.6-95. The product is designed to provide accurate and
stable testing conditions for various industrial products.
Lighting Device
The test chamber is equipped with 1 LED lighting device, installed
on the window. This allows for clear visibility inside the chamber
during testing.
Equipment Overview
The constant temperature and humidity test chamber is designed for
environmental simulation reliability tests on industrial products.
It is suitable for a wide range of testing requirements and meets
the standards of GB5170.2.3.5.6-95. The chamber is equipped with
advanced technology to provide precise and accurate control of
temperature and humidity levels.
Humidity Fluctuation
The humidity fluctuation of this test chamber is ±1.0％RH, ensuring
that the testing conditions remain stable and consistent throughout
the entire test process.
Condenser System
The condenser system of this test chamber is air-cooled, providing
efficient cooling and ensuring a consistent temperature range for
testing.
Heating Rate
The heating rate of this test chamber is from -20℃ up to +100℃
within 40 minutes. This allows for quick and efficient heating,
even when the chamber is unloaded and the ambient temperature is
+25℃.
Key Features
- Climate Test Chamber
- Industrial Test Chamber
- Environmental Test Chamber
Overall, the constant temperature and humidity test chamber is a
reliable and efficient product designed to meet the demanding
testing requirements of various industrial products. Its advanced
technology, precise control, and wide control range make it an
ideal choice for environmental simulation tests.
Applications:
Product Application and Scene of Constant Temperature and Humidity
Test Chamber
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Sample holder: Stainless Steel Sample Rack 2 Layers, Height
Adjustable, Bearing Weight 30kg/ Layer.
Temperature fluctuation: ±0.5℃
Models: IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, IE10A1
1000L
Equipment Overview: This Series Of Constant Temperature And
Humidity Box Is Suitable For Environmental Simulation Reliability
Test Of Industrial Products, With The Characteristics Of
Temperature And Humidity Control Accuracy And Wide Control Range,
And The Performance Indicators Meet The Requirements Of
GB5170.2.3.5.6-95.
Humidity uniformity: ±3.0％RH(no Load)
Key Features: Programmable constant temperature and humidity test
chamber, Programmable High & Low Temperature humidity Test Chamber,
Programmable constant temperature and humidity test chamber.
Application Scene:
- Laboratory testing for electronic and electrical components
- Quality control testing for pharmaceuticals and food products
- Environmental simulation testing for automobiles and aerospace
components
- Long term stability testing for materials and products
- Research and development testing for new products
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L |
| Temp. range | -20℃ ～ +150℃ |
| Temp. fluctuation | ±0.5℃ |
Temp. uniformity
| ≦2.0℃ |
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature
+25℃) |
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature
+25℃) |
| Humidity control range | 20%R.H～98%R.H |
| Humidity deviation | ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| Humidity evenness | ±3.0％RH (no-load test) |
| Humidity fluctuation | ±1.0％RH |
Inner box size WxHxD(mm) | 500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 |
Outside box size WxHxD(mm) | 720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 |
| Fluid Warmers | ● Outer wall material: high quality carbon steel plate, surface for
electrostatic color spray treatment. The left side of the box is
φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer +
glass fiber. |
| Door | For a single door, install a heating wire in the door frame to
prevent condensation in the door frame at low temperature. |
| Inspection window | The W 300×H 400mm observation window is installed on the door of
the box, and multi-layer hollow electrothermal coated glass can
effectively keep heat and prevent condensation. |
| Lighting device | 1 set LED lighting device, installed on the window. |
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing
weight 30kg/ layer. |
| Refrigeration compressor | France Tecumseh fully closed compressor |
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with
environmental regulations, safe and non-toxic |
| Condenser system | air-cooled |
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection;
Heater overcurrent protection; Humidifier overcurrent protection;
Circulating fan overcurrent overload protection; Compressor high
pressure protection; Compressor overheat protection; Compressor
overcurrent protection; Overvoltage underinverse-phase protection;
Circuit breaker; Leakage protection; Humidifier low water level
protection; Tank low water level warning. |
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW |
Customization:
Customized Service for Constant Temperature and Humidity Test
Chamber - INFINITY
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Models: IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, IE10A1
1000L
Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Product Name: Programmable Constant Temperature And Humidity Test
Chamber
Temperature fluctuation: ±0.5℃
Heating rate: From -20℃ Up To +100℃ Within 40min (When Unloaded,
The Ambient Temperature Is +25℃)
Environmental Testing Chambers: Our company, INFINITY, is a leading
manufacturer of environmental testing chambers. We specialize in
providing high quality and reliable climatic test chambers for
various industries.
Climatic Test Chamber: Our constant temperature and humidity test
chamber, model IE10A1, is designed to simulate various
environmental conditions for testing the performance and durability
of products.
Climatic Test Chamber Manufacturer: As a professional climatic test
chamber manufacturer, we offer customized services to meet specific
testing requirements of our clients. Our experienced engineers can
work closely with you to design and manufacture a test chamber that
meets your exact needs.
Customized Service: At INFINITY, we understand that every product
and testing requirement is unique. That's why we offer customized
services to ensure our constant temperature and humidity test
chamber meets your specific testing needs.
Constant Temperature and Humidity Test Chamber: Our IE10A1 model is
equipped with advanced temperature and humidity control system,
ensuring precise and stable testing conditions. It is suitable for
testing a wide range of products such as electronic components,
pharmaceuticals, and other materials.
Packing and Shipping:
Packaging and Shipping
The constant temperature and humidity test chamber is carefully
packaged to ensure safe delivery to our customers. The packaging
materials used are durable and can withstand transportation and
handling. Each unit is securely packed in a wooden crate to prevent
any damage during shipping.
For international orders, the product is shipped via air or sea
freight, depending on the customer's preference. Our team will
coordinate with the chosen shipping company to ensure timely and
efficient delivery.
Once the product reaches its destination, our team will assist with
the unloading and installation process to ensure proper set-up and
functioning of the test chamber.
For domestic orders, the product is shipped through a trusted
courier service or our own delivery team, depending on the
location. Our team will provide tracking information and estimated
delivery time to keep customers updated on the status of their
order.
Overall, our packaging and shipping process is designed to ensure
the safe and timely delivery of our constant temperature and
humidity test chamber, providing our customers with a seamless
experience from purchase to installation.
