Servo Control Phone Drop Testing Machine, Automatic Smartphone Drop
Testing Machine, Mobile Phone Drop Testing Machine
Model: DT2000
Standard: IEC 60068-2-32
Specification:
| Products | Directional Mobile Phone Drop Testing Machine |
| Model | DT2000 |
| Drop height | 300~2000mm |
| Max sample weight | 2kg |
| Drop height setting | Touch panel setting and display |
| Min release height | 300mm |
| Counter | 0~999,999 (settable) |
| Air source | ≥0.5MPa |
| Tester size | W1000xD1180xH2415mm |
| Weight | About 420kg |
| Power supply | AC220V 50Hz 3A or 110V 60Hz 6A |
| Drop bases | Steel, Wood, Granite |
| Sample fixing | Sucker or Clamper |
Application:
Directed Cellphone Drop Testing Machine is to evaluate the product
performance after unintentional drop, it is suitable to do test for
all kinds of consuming electronic products, such as the mobile
phone, tablet, e-reader, telephone, e-dictionary , remote control
ETC.
Servo Control Mobile Phone Drop Testing Machine is the wide-ranging
using in the manufacturers for mobile phones and tablets, such as
ZTE, Foxconn, Liteon, Compal, Quanta, Salcomp, AAC, Gree, BYD
Holitech,Ofilm, Foxlink ETC.
Machine Structure:
a. High Precision Cell Phone Drop Testing Machine adopts AC servo
motor and synchronous pulley for the drop height adjusting, can
guarantee the height precision, and long durability.
b. Hanset Drop Testing Machine adopts the color touchpanel+ PLC to
control and set the motion, can set the drop height directly, it
will auto stop when it reaches the set height, it can preset the
drop times and has power-off memory function, all the controls can
be done in the touch panel: drop, reset, height setting, drop
times, and counting.
c. Mobile Device Drop Testing Machine is to use the SMC vacuum
sucker for the samples sucking, the edges, corner can faces impact
can be done.
d. Tested sample will be released at the height of 300mm, the
tested sample drop gesture is close to the original set gesture.
e. Automatic Telephone Drop Testing Machine is used aluminum alloy
frame and transparent PMMC as the whole sealing enclosure , it is
installed with the Omron safety lock, , the tester can be triggered
when it locks, that can guarantee the security.
f. All the pneumatic parts are from SMC, can make sure the high
performance and long durability.
g. Various drop bases are available: steel base, wood base, granite
base, that is to meet the various impact medium requirements.
h. Auto count(Drop cycles) function function, Auto drop mode and
the manual drop mode are switchable.
i. The drop friction can be lowest because it uses the Japan THK
high precision low friction sliding rail.
j. Telefono Auto Drop Testing Machine has special handle
controller, it is convenient to control the Start, Stop, and Reset
during the testing.
Sucker sucking angle: 0°,45°, 90°:
To use PMMA to make the fence to prevent the tested Sample from
bounding out of the drop base area.
To use color LCD touchpanel controller.
With acceleration testing device( First design in China):Chinese
and English Interface, easy operation, strong performance.
Software Specialties:
After testing, auto display the drop speed.
Three vacuum suckers freely switchable.
After drop, Auto return to sample loading position.
Drop height, Sample loading height can be set, drop times
display/Reset

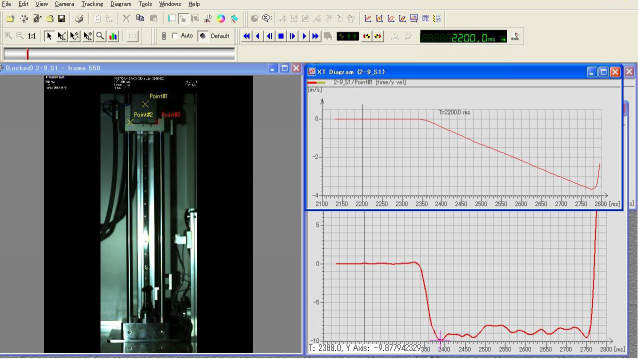

Several customers adopted high speed camera, laser distance meter
to verify the accuracy of drop speed and acceleration.
